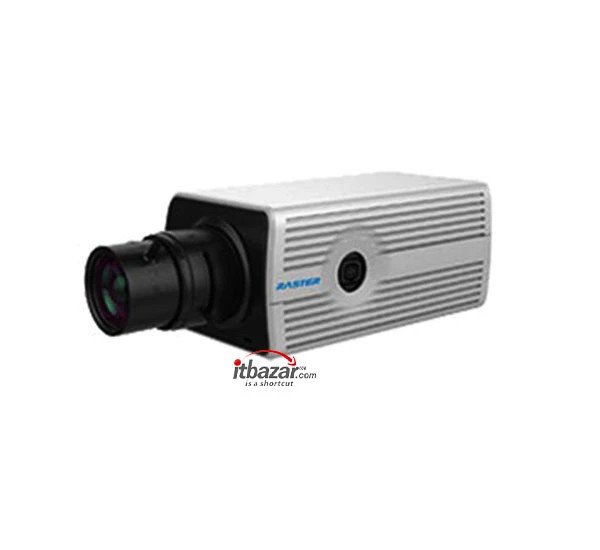

دوربین مدار بسته رسترRS-lp5300HF
توضیحات
- Up to 3 megapixel (2048 x 1536) @ 20 fps resolution
- Standard video compression with high compression ratio.
- Progressive scan CMOS
- Built-in Micro SD / SDXC card slot, up to 64GB
- Support 3D DNR
- Support WDR, up to 120dB
- Support ABF (-A model)
- Support Defocus Detection and alarm linkage
- Support Environmental Noise Filtering
- IR cut filter with auto switch
- Built-in microphone, Two-way audio
- Support Smart Defog
- Support EIS
- PoE (Power over Ethernet)
- کیفیت تصویر 3 مگاپیکسل
- برند Raster Blue
- نوع دوربین بالت
- Onvif دارد
- POE دارد
- ضبط صدا دارد
- Alarm دارد
| Model
Parameter |
RS-IP5300HF |
| ۳ Megapixel CMOS WDR ICR Network Box Camera | |
| Camera | |
| Image Sensor | ۱/۳” Progressive Scan CMOS |
| Min. Illumination | Color: 0.1 Lux @ (F1.2, AGC ON)
B/W: 0.01 Lux @ (F1.2, AGC ON) |
| Shutter Speed | ۱/۳ s to 1/100,000 s |
| Slow Shutter | Support |
| Lens Mount | C/CS mount |
| Auto-iris | DC drive |
| Day & Night | IR cut filter with auto switch |
| Digital Noise Reduction | ۳D DNR |
| Wide Dynamic Range | ۱۲۰dB |
| Focus | ABF(-A model) |
| Compression Standard | |
| Video Compression | H.264/MPEG4/MJPEG |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| Video Bit Rate | ۳۲ Kbps – ۱۶ Mbps |
| Audio Compression | G.711/G.726 |
| Audio Bit Rate | ۶۴Kbps(G.711) / 16Kbps(G.726) |
| Im |
